Lexus RX Rear Suspension Squeak Noise: TSB L-SB-0030-19 / L-TCI-5274 Explained
If your 4th Generation Lexus RX creaks or squeaks from the rear suspension whenever you drive over speed bumps, roll into an uneven driveway, or come to a complete stop, you are far from alone. Lexus published official Technical Service Bulletin L-SB-0030-19 (Canada: L-TCI-5274) to resolve this persistent squeak noise caused by the rubber bushings inside the Rear Suspension No. 2 Arm Assemblies (trailing arms).
Master Tech Real-Bay Scope: Over 50% of 2016–2022 RXs Suffer From This
While the original factory bulletin specifically lists 2016–2019 RX 350, RX 450h, RX 350L, and RX 450hL, in everyday dealership bays this issue applies across the entire 4th Generation production run from 2016 through 2022. The rear suspension geometry and trailing arm bushings are physically identical. Over 50% of all 4th Gen RX SUVs eventually enter service bays for this exact squeak!
Covered under Lexus Basic Warranty (48 Months / 50,000 Miles US or 48 Months / 80,000 km Canada). If you are within this window, the parts and labor are 100% free.
Service Bay Insider Truth: The $150–$250 Wheel Alignment Upsell
When you take your RX to a dealership or independent shop for this repair, service advisors will almost certainly claim: "Since we are tearing down the rear suspension to replace trailing arms, you must perform a mandatory 4-wheel alignment for $189–$250."
The Master Tech Reality from the Hunter Alignment Rack: The Rear No. 2 Trailing Arm is purely a longitudinal locating link—it controls the fore-and-aft position of the rear knuckle. Rear camber and rear toe on this chassis are controlled by the transverse upper/lower arms and the eccentric toe adjustment cam bolts.
In over 10 years of putting these vehicles onto our Hunter Hawkeye Elite alignment rack before and after swapping these trailing arms, rear toe and camber virtually never move out of specification! Unless your car already had abnormal tire edge wear or pulling to one side before the repair, do not fall for this unneeded upsell!
Symptoms & Driving Conditions
- • Squeak or creaking noise from the rear suspension when driving over speed bumps, dips, or unpaved gravel roads.
- • Weight-transfer noise when coming to a complete stop (rebound squeak) or accelerating from a standstill.
- • Driveway angle creak when entering inclined entrances or speed ramps with body articulation.
- • Noticeably louder in cold or dry weather due to stiffened rubber compound friction.
Zero-Cost Diagnostic Trick: The Soapy Water Test
Lexus engineering's official confirmation method takes 30 seconds and costs $0.00:
1. Mix ordinary liquid dish soap with warm water in a spray bottle.
2. Spray the mixture liberally directly onto the Rear Suspension No. 2 Trailing Arm Bushings on both sides.
3. Immediately drive the vehicle across the bump or driveway that triggers the noise.
✓ If the squeaking sound disappears or drops dramatically for 15 minutes, you have 100% positive proof that the trailing arm bushings are bad!
📐 Official TSB Technical Diagrams & Component Identification
Official Lexus engineering diagrams from bulletin L-SB-0030-19 illustrating the No. 2 trailing arm assembly and critical identification markings:

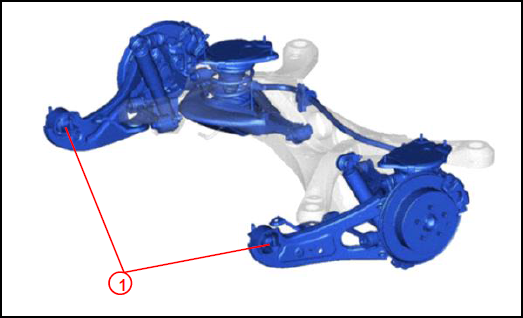

Lexus factory diagram showing the Rear Suspension Arm Assembly No. 2 (Trailing Arm). The squeak originates from inner rubber friction within the forward pivot bushing highlighted above.

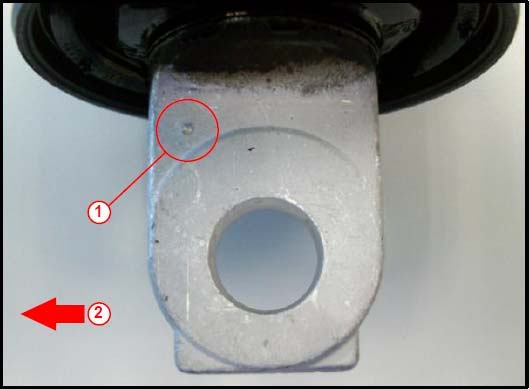

Left Hand (LH) Identification Mark: Must face the OUTSIDE of the vehicle during installation.

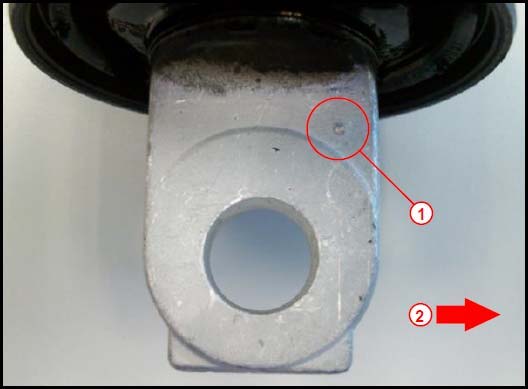

Right Hand (RH) Identification Mark: Must face the OUTSIDE of the vehicle during installation.
🔩 Revised OEM Countermeasure Part Numbers
The original bushings were molded with a rubber composition prone to slip-stick binding. Lexus superseded both rear arms with updated countermeasure assemblies. Always replace both sides as a pair.
| Position | Previous Part Number | New Countermeasure P/N | Qty | Status |
|---|---|---|---|---|
| Right Hand (RH) Arm Assy | 48760-0E051 / 48760-48061 | 48760-0E070 | 1 | Active Updated |
| Left Hand (LH) Arm Assy | 48780-0E061 / 48780-48091 | 48780-0E080 | 1 | Active Updated |
* Note: Bushings are not sold separately by Lexus OEM for this arm; they come pre-pressed into the complete arm assembly.
⏱️ Official Lexus Warranty Claim Information
Lexus Warranty Policy: Covered under the Lexus Basic Warranty for 48 months or 50,000 miles (80,000 km Canada), whichever comes first. OFP (Original Failed Part): 48760-0E051 (RH) / 48780-0E061 (LH).
🔧 Master Tech Recommended Diagnostic & Suspension Tools
Tools used in our dealership bays to verify chassis noises and torque suspension links
Autel MaxiAP AP200 Bluetooth OBD2 Scanner
Scans all Lexus OEM systems (ABS, EPS, Suspension, VDIM, RoB). Essential before taking your RX to the dealer to document any stored chassis fault history.
Steelman PRO Wireless ChassisEAR Diagnostic Tool
Professional multi-channel chassis microphone kit. Clamps onto trailing arm bushings, control arms, and struts while road testing to isolate elusive squeaks with 100% certainty.
TEKTON 1/2-Inch Drive Click Torque Wrench (10-150 ft-lb)
Required for torquing trailing arm through-bolts under full vehicle curb weight. Prevents bushing pre-twist stress and bushing tear.
❓ Frequently Asked Questions (TSB L-SB-0030-19 / L-TCI-5274)
What causes the squeaking noise in 2016–2022 Lexus RX rear suspension? +
The squeaking noise is caused by internal rubber friction and binding inside the bushings of the Rear Suspension No. 2 Arm Assemblies (trailing arms). When the vehicle encounters uneven road surfaces or weight shifts during braking and acceleration, the rubber twists and emits an audible squeak. Lexus redesigned the internal bushing structure in updated countermeasure arms (48760-0E070 RH / 48780-0E080 LH) to eliminate this noise permanently.
Do I really need a 4-wheel alignment after replacing the trailing arms? +
In our dealership experience on Hunter Hawkeye Elite alignment racks, almost never. The trailing arm is a longitudinal link that locates the wheel hub fore and aft; camber and toe are governed by the transverse lower and upper control arms and eccentric cam bolts. Unless your vehicle had pre-existing uneven tire wear or off-center steering, an alignment is virtually never required. Do not let dealerships pressure you into an unneeded $150–$250 upsell.
Does this TSB apply to 2020, 2021, and 2022 Lexus RX models? +
Yes. Although the published bulletin specifies 2016–2019 because it was written in 2019, in actual service bays the entire 4th Gen RX family (2016 through 2022 RX 350, RX 450h, RX 350L, and RX 450hL) uses the identical suspension architecture. Over 50% of all 4th Gen RX models eventually develop this exact trailing arm bushing squeak.
How can I confirm my trailing arm bushings are bad before paying a dealer? +
Spray soapy water directly onto the rear trailing arm bushings on both sides and immediately test-drive over bumps. If the noise instantly stops or drops by 90%, you have 100% positive confirmation that the trailing arm bushings are the cause.
What is the critical installation rule for the new trailing arms? +
The stamped identification mark on each new trailing arm must face toward the OUTSIDE of the vehicle. If installed backward, the bushing will twist against its intended axis, causing binding and premature failure. Also, both LH and RH sides must always be replaced as a pair.
