Lexus NX & RX Power Back Door Won't Close (Beeps Twice)? The Master Tech 'Record of Behavior' Secret Dealers Miss
Tailgate opens normally, but emits a double-beep warning chime and refuses to close? Dealerships frequently dismiss this intermittent failure as 'could not duplicate.' Here is how a 10-year Lexus Master Diagnostic Technician uses factory GTS+ 'Record of Behavior (RoB)' history to prove the Touch Sensor (Pinch Sensor) is defective and secure a 100% free warranty replacement.
Component Location

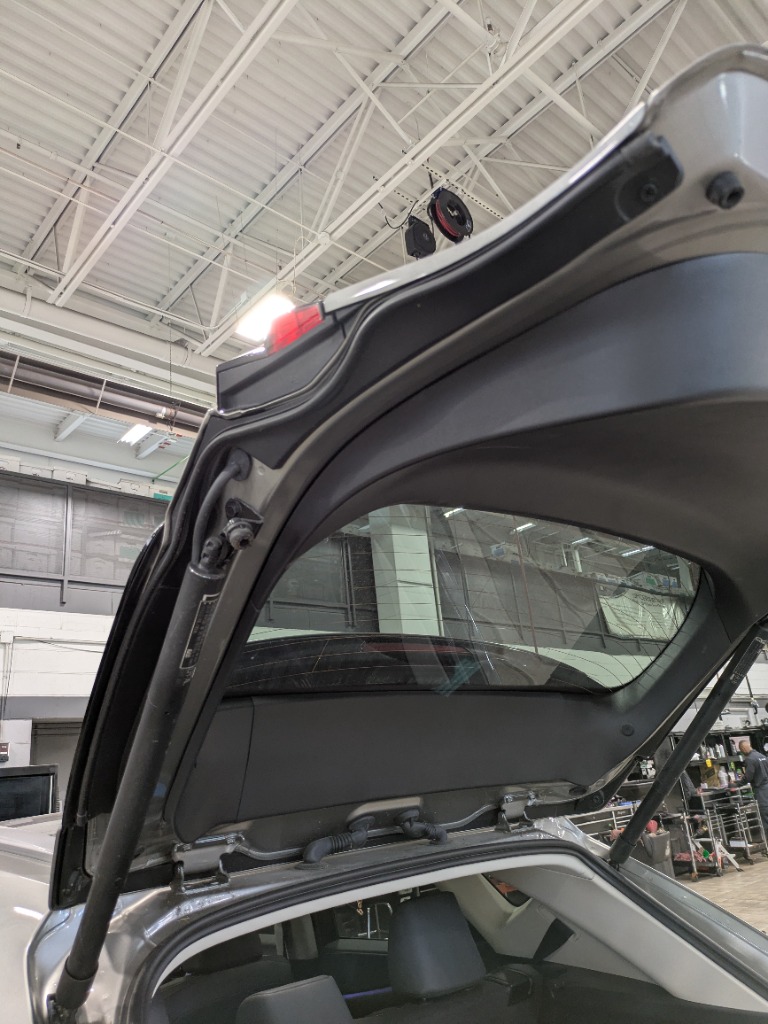

Figure 1: 2022+ Lexus NX / 2023+ RX Power Back Door with outer rubber Touch Sensor (Pinch Sensor strip) running along the liftgate perimeter.
GTS+ RoB Proof

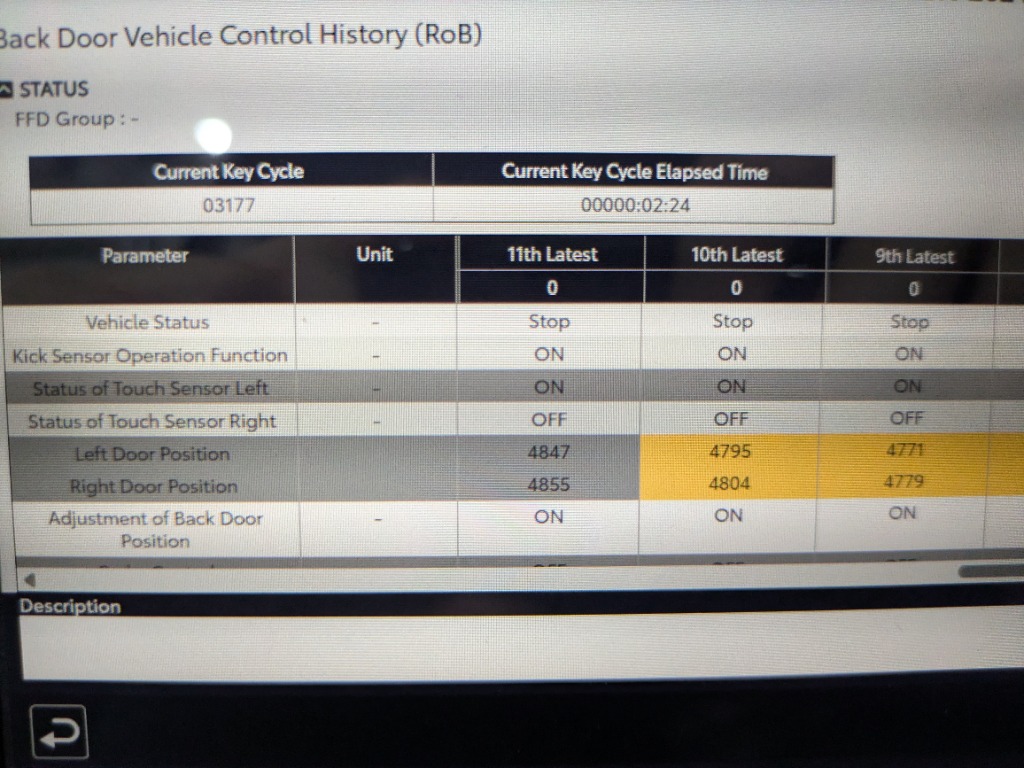

Figure 2: Factory GTS+ / Techstream scan tool screen showing 'Back Door Vehicle Control History (RoB)'. Notice 'Status of Touch Sensor Left: ON' while door is wide open (Pulse 4847)—irrefutable proof of a failed sensor.
The Symptom: Double-Beep Lockout on Close Attempt
The power liftgate opens smoothly with the key fob, dashboard button, or exterior latch. However, after loading cargo, pressing the bottom close button (or kick sensor) results in two warning beeps ('beep-beep') and absolute silence. The motorized spindle struts do not engage, refusing to pull the door down. Owners are forced to either push the heavy door down manually or drive with an open hatch.
The 'Could Not Duplicate' Dealer Frustration
Because the touch sensor failure is often intermittent—triggered by thermal expansion, direct sunlight, moisture, or body flexing—the tailgate frequently operates normally once the car is driven into the dealership's climate-controlled service bay. Service advisors routinely return the keys with 'Could not duplicate customer concern; operating as designed,' billing 0.0 warranty hours and leaving the customer stranded.
Why the Liftgate Refuses to Close: The Pinch Sensor Architecture
Master Diagnostic Engineering Breakdown
Jam Protection Safety Architecture: Lexus equips both outer edges of the power back door with sensitive rubber touch sensors (pinch strips). Inside each flexible strip are continuous ribbon electrodes separated by minute gaps.
Safety Circuit Trigger: When physical pressure is applied (e.g. an arm, fingers, or cargo trapped in the opening), the electrodes contact, sending a ground signal to the Power Back Door ECU to immediately reverse or abort closing.
Internal Micro-Short Failure: On 2022-2026 NX and 2023-2026 RX models, internal micro-fractures, manufacturing stress, or moisture intrusion cause the internal ribbon contacts to bridge internally even when nothing is touching the door.
Zero DTCs Logged: Because an obstruction is treated by the ECU as an 'operational safety event' rather than an electrical circuit break (open circuit), standard OBD2 diagnostic trouble codes (DTCs) are NEVER set. A standard quick-scan shows zero errors.
The Master Tech Diagnostic Weapon: Record of Behavior (RoB)
Black box telemetry captured directly from the Power Back Door ECU
While generic OBD2 scanners and standard health checks find nothing, the Lexus Power Back Door ECU contains a dedicated 'black box' event logger called Record of Behavior (RoB) / Vehicle Control History. It logs millisecond sensor telemetry across the last 15 tailgate operations.
| GTS+ RoB Parameter | Normal Open Value | Failed Event Reading | Master Tech Meaning |
|---|---|---|---|
| Status of Touch Sensor Left | OFF (Circuit Open) | ON (Circuit Closed / Shorted) | ECU detected an obstacle on Driver's side strip despite door being wide open |
| Status of Touch Sensor Right | OFF (Circuit Open) | OFF (Normal) | Passenger side sensor is healthy and operational |
| Left & Right Door Position | 4700 - 4900 Pulses | 4847 / 4855 Pulses | Door was fully open and completely stationary when close was commanded |
| Vehicle Status | Stop | Stop | Vehicle was parked; lockout caused 100% by Touch Sensor signal |
Master Tech Warranty Advocacy: What to Say to Your Dealer
Covered 100% Free under Lexus Basic Factory Warranty (4 Years / 50,000 Miles in the US | 4 Years / 80,000 km in Canada)When you take your Lexus to the dealership, do not simply say "my trunk doesn't close." Say this exact technical statement to your Service Advisor:
"My power liftgate intermittently beeps twice and refuses to close. Since it may not fail in your shop today, please have the technician connect GTS+ to the Power Back Door ECU and inspect the 'Record of Behavior (RoB)' under Vehicle Control History. Look for 'Status of Touch Sensor Left' or 'Right' showing ON during past failed close cycles."
Why this phrase forces dealer action:
When you specify the exact ECU data channel ('GTS+ Power Back Door -> RoB -> Touch Sensor Status'), the technician does not waste time attempting manual reproduction. Pulling RoB takes less than 3 minutes, captures the frozen historical proof required for warranty submission, pinpoints exactly which side (Left or Right) is defective, and obligates the dealer to replace the sensor under warranty at zero charge.
🔍 Inspection & DIY Diagnostic Steps
Step 1: Inspect the Rubber Pinch Strips
Walk to the back of your NX or RX. Inspect the vertical black rubber sensor strips running down both edges of the hatch. Check for visible gouges, tears, or rubber deformations.
Step 2: Clean Off Road Film & Wax
Thoroughly clean both rubber strips with isopropyl alcohol or warm soapy water. Heavy road grime or automated car wash wax buildup can create localized surface stiffness.
Step 3: Document the Malfunction on Video
Before visiting the dealership, take a smartphone video showing the door open, pressing the close button, and capturing the double-beep rejection. Present this alongside the RoB diagnostic instruction.
🛠️ Recommended Tools & Diagnostic Equipment
Dealer-level diagnostic interfaces and maintenance products verified for Lexus vehicles
VXDIAG VCX Nano for Toyota/Lexus (Techstream & GTS Diagnostic Interface)
Professional PC diagnostic interface supporting Toyota/Lexus GTS+ and Techstream. Allows full access to Power Back Door ECU, Record of Behavior (RoB), customizations, and live sensor data.
Autel MaxiCOM MK808S Bi-Directional All-System Scan Tool
Full-featured bi-directional tablet scanner capable of interrogating Lexus body electrical modules, door position telemetry, and active component commands.
303 Aerospace Protectant (16 oz) - Weatherstrip & Sensor Conditioner
Premium matte-finish UV conditioner for automotive rubber weatherstripping and liftgate pinch sensors. Keeps rubber supple, prevents micro-cracking, and repels dirt.
❓ Frequently Asked Questions: Back Door Touch Sensor Fix
Why does my Lexus NX or RX power trunk beep twice and not close?
A double-beep when pressing the close button indicates the Power Back Door ECU has triggered Jam Protection. On 2022+ NX and 2023+ RX vehicles, this is almost always caused by an internal short circuit in either the Left or Right rubber Touch Sensor (Pinch Sensor), tricking the vehicle into believing an obstruction is present.
Why didn't my dealer find any trouble codes (DTCs)?
Because obstacle detection is designed as an operational safety function rather than an open electrical circuit failure, the ECU does not generate standard OBD2 trouble codes. The diagnostic proof is stored exclusively in the 'Record of Behavior (RoB)' history log inside the Power Back Door ECU.
Is this liftgate touch sensor covered under factory warranty?
Yes. This repair is 100% covered under the Lexus Factory Basic Warranty (4 years / 50,000 miles in the US, 4 years / 80,000 km in Canada). Both parts and dealer labor are completely free.
Can I safely close the trunk manually when this happens?
Yes. You can slowly pull the tailgate down by hand until the power latch engages and cinches it shut. Doing this occasionally will not damage the electric spindle actuators, but avoid slamming it forcefully.
How does the technician know which sensor to replace (Left vs Right)?
By viewing the GTS+ Record of Behavior (RoB) history table, the technician checks 'Status of Touch Sensor Left' and 'Status of Touch Sensor Right'. The parameter showing 'ON' during the failed operation pinpoints the exact defective sensor without any guesswork.
